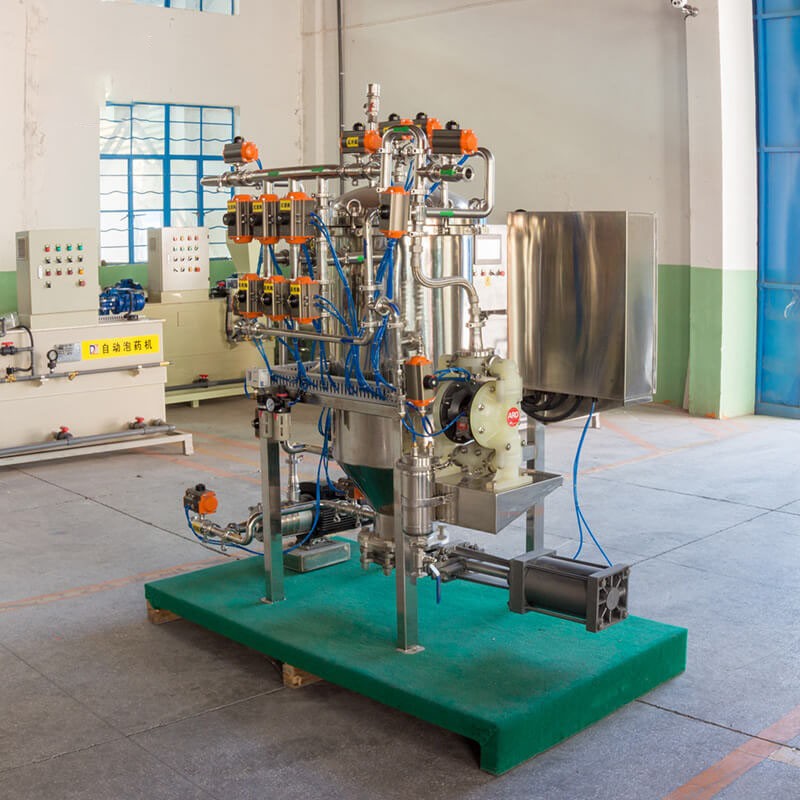

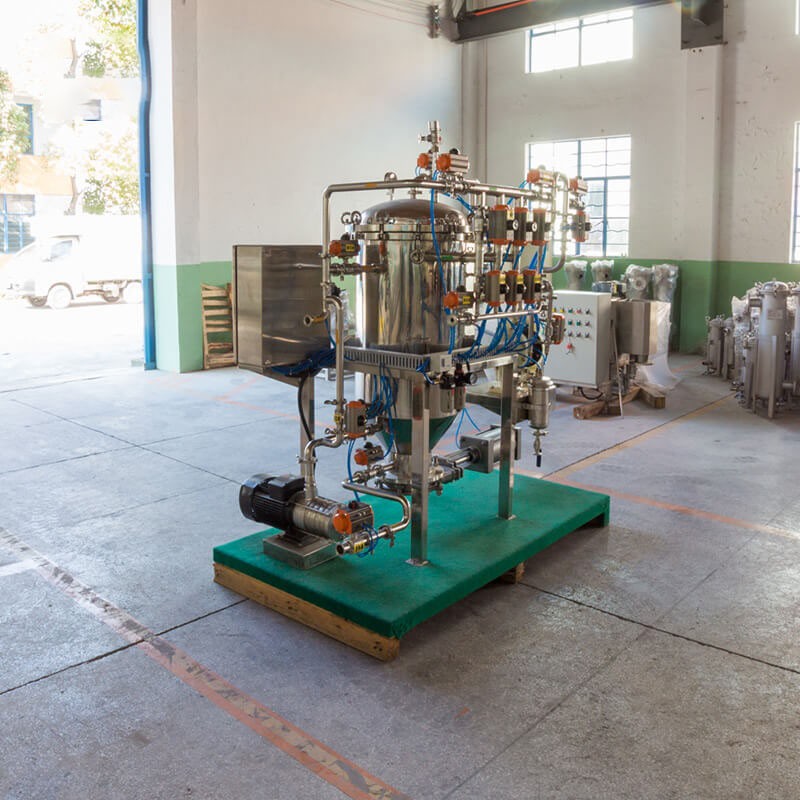

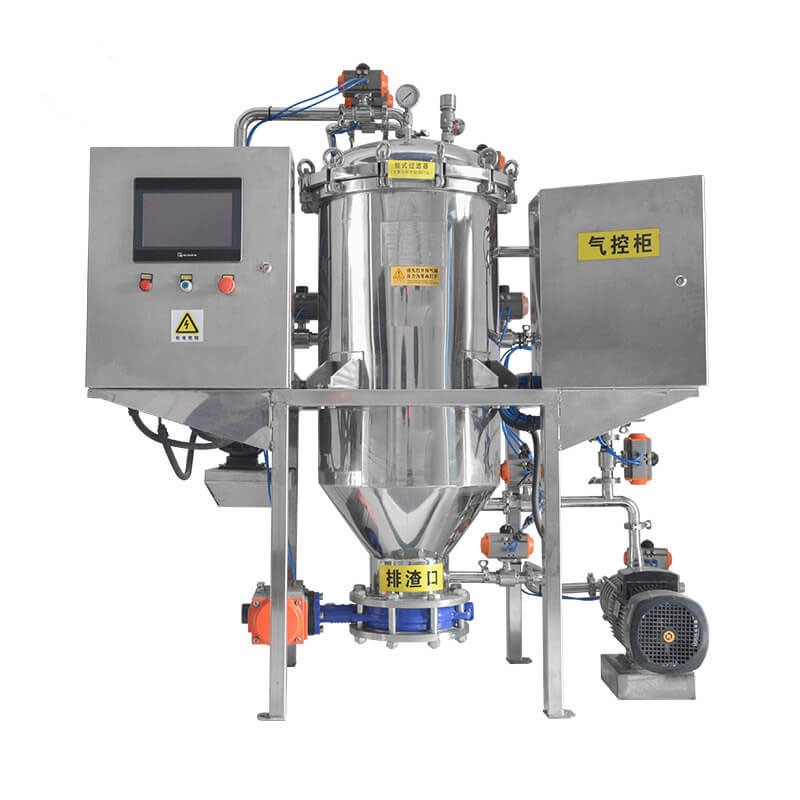

Pharmaceutical Fully automatic Candle Type Filter for Medicine Industry (SS 304, SS316l)

Pharmaceutical Fully automatic Candle Type Filter for Medicine Industry (SS 304, SS316l)

Filter precision:0.5-800μm
Cartridge:candle filter cartridge
Material:S.S 304, 316L, Carbon steel
Warranty of core components:1 Year
Filter area :1-60m²
Design temperature:1-200°C

Ask Us

Description
Video

Overview

Candle filters are widely used in the pharmaceutical industry. During drug production, they offer excellent corrosion resistance and high-temperature tolerance, meeting the demands of various chemical reagents and high-temperature environments.
Compared to traditional bag filters and manual plate filters, pharmaceutical candle filters achieve 100% automation, making them highly suitable for filtering flammable, toxic, and corrosive substances. The system enables automatic recovery and filtration without shutdown, effectively avoiding production interruptions and ensuring operational safety for personnel.

Key Advantages

Excellent corrosion resistance in a wide range of chemical fluids.

High temperature resistance.

High filtration precision, suitable for pharmaceutical fine filtration.

All filtering steps are automated.

Mobile and flexible design, short production cycles and frequent batch changes.

Easy operation for cleaning, drying and discharging filter cake.

Specification

Model	Cartridge QTY	Cartridge Size (mm)	Filtering Area (m²)	Capacity (t/h)	Housing Volume (L)	Inlet	Cake Discharging Outlet	Total Height (mm)
DZZS-1	7	90×500	1	2.2	140	DN25	DN150	1902
DZZS-1.5	10	90×500	1.5	3.3	180	DN25	DN200	1928
DZZS-2	7	90×1000	2	4.4	220	DN32	DN150	2402
DZZS-3	10	90×1000	3	6.6	280	DN40	DN200	2428
DZZS-4	14	90×1000	4	8.8	400	DN40	DN200	2502
DZZS-6	19	90×1000	6	13.2	560	DN50	DN250	2578
DZZS-8	24	90×1000	8	18	740	DN65	DN250	2644
DZZS-12	40	90×1000	12	26	1200	DN65	DN300	2854
DZZS-18	64	90×1000	18	40	1800	DN80	DN400	2904
DZZS-30	106	90×1000	30	66	3000	DN100	DN500	3440
DZZS-40	140	90×1000	40	88	3815	DN150	DN500	3560
DZZS-60	190	90×1000	60	132	5700	DN150	DN500	3700

Typical Application Scenarios

Separation of biomass from fermenter slurries.
Separation of precipitated solids in downstream processing lines.
Activated carbon treatment of liquid product streams.
Separation of heterogenous catalysts in hydrogenation reactions.
Filtration of crystalline products.
Capture of cell debris from both mammalian and bacterial cells.
Removal of precipitates from enzymes and plasma.
Protein fractions.
Phase separation in blood substitutes.
Crystal separation of injectable antibiotics.

Selection Notes (Limitations)

Stringent validation and documentation requirements apply. Comprehensive material certificates, welding records, FAT/SAT documentation, and validation support must be provided.
Operational management demands strict adherence. Differential pressure, flow rates, and cleaning procedures require rigorous control to prevent compromised filtration performance or cross-contamination risks.
