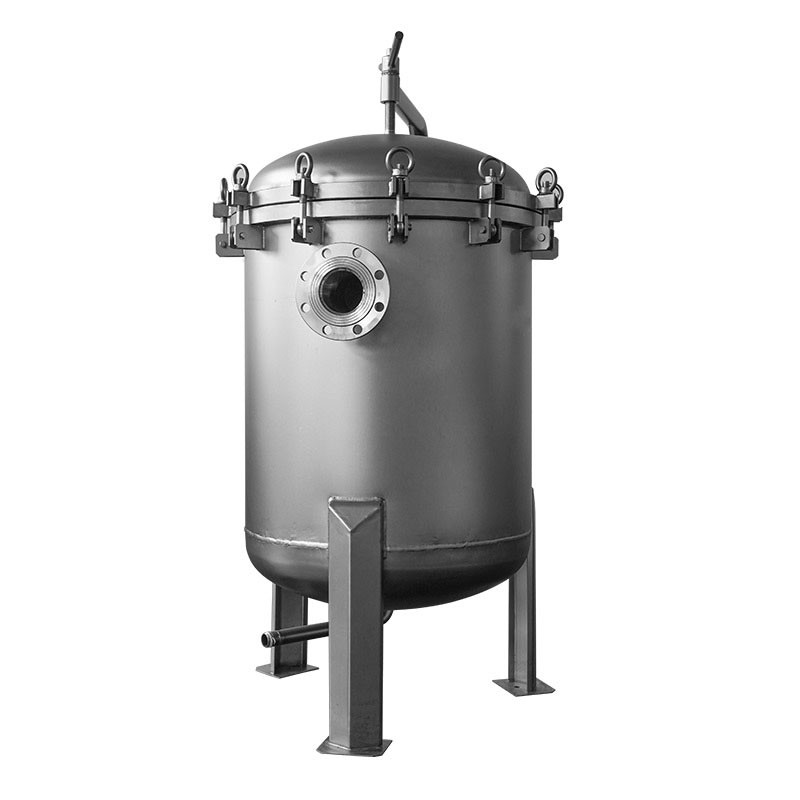

Stainless Steel Multi Bag Filter Housing For Water Treatment

Description

The bag filter is a multi-purpose filtration equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability.

The inside of the bag filter is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. The impurities are intercepted in the filter bag and can be used continuously after the filter bag is replaced.

Bag filter has the following categories: single bag filter, multi-bag filter, rocker bag filter, high-precision bag filter, etc., the filter filtration precision is in the range of 1-10 microns.

Specification

Features

• Bag filter has large capacity, small volume and large sewage capacity;
• It is convenient and fast to replace the filter bag, and the filter is free of cleaning, saving time and labor;
• Filter bag can be used repeatedly after cleaning to save costs;
• The filtering accuracy of the filter bag has been continuously improved, and has reached 0.5 μm;
• The side leakage rate of the filter bag is small, effectively ensuring the filtering quality;
• Bag filter can bear greater working pressure, with small pressure loss, low operating cost and obvious energy-saving effect;
• Bag filter has a wide range of applications, flexible use, and various installation methods. It can be pulled along with small carts.

Structure and working principle

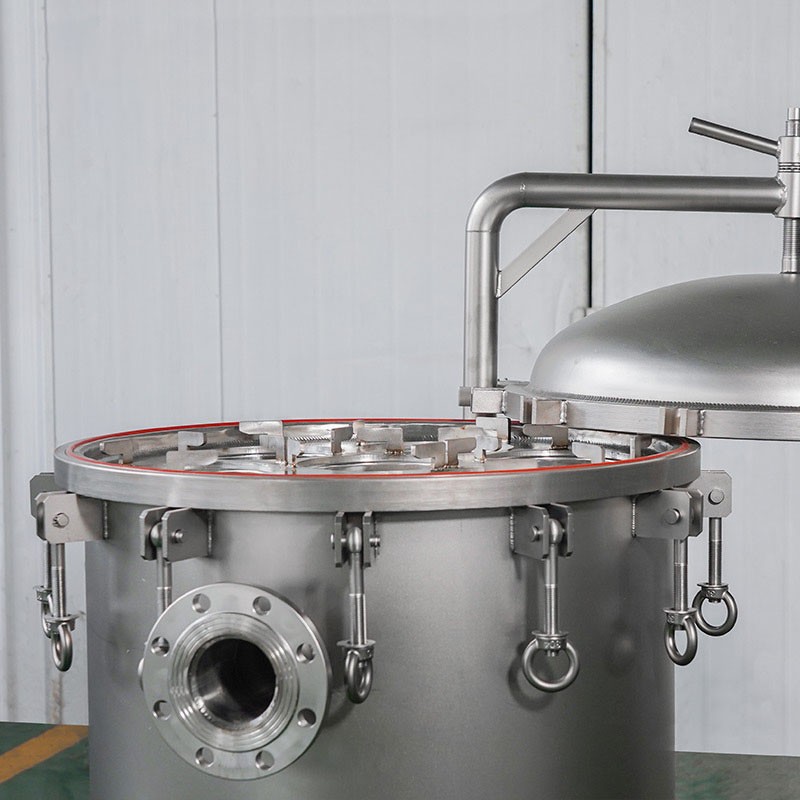

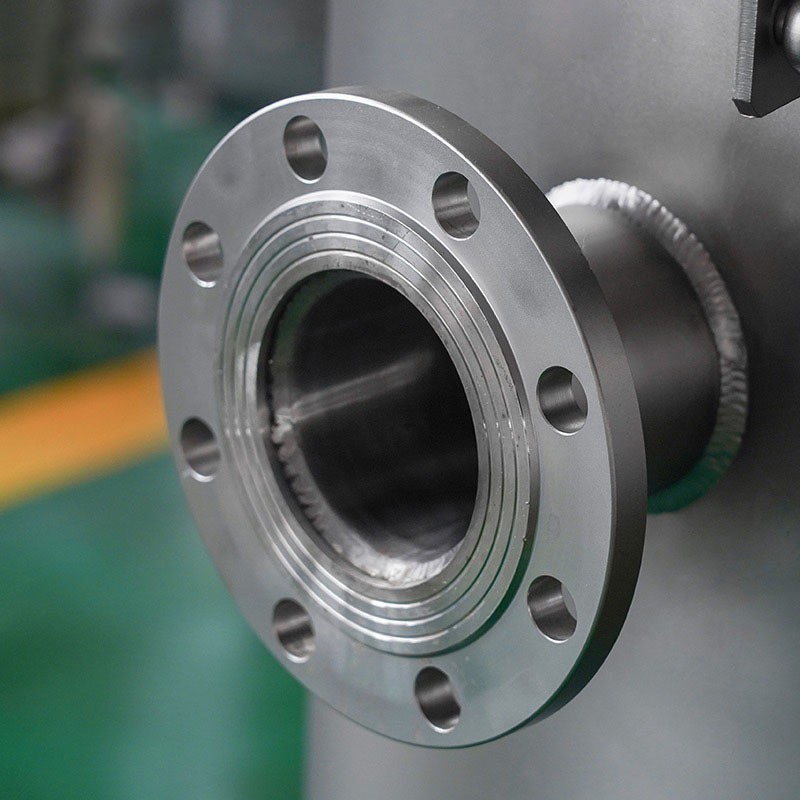

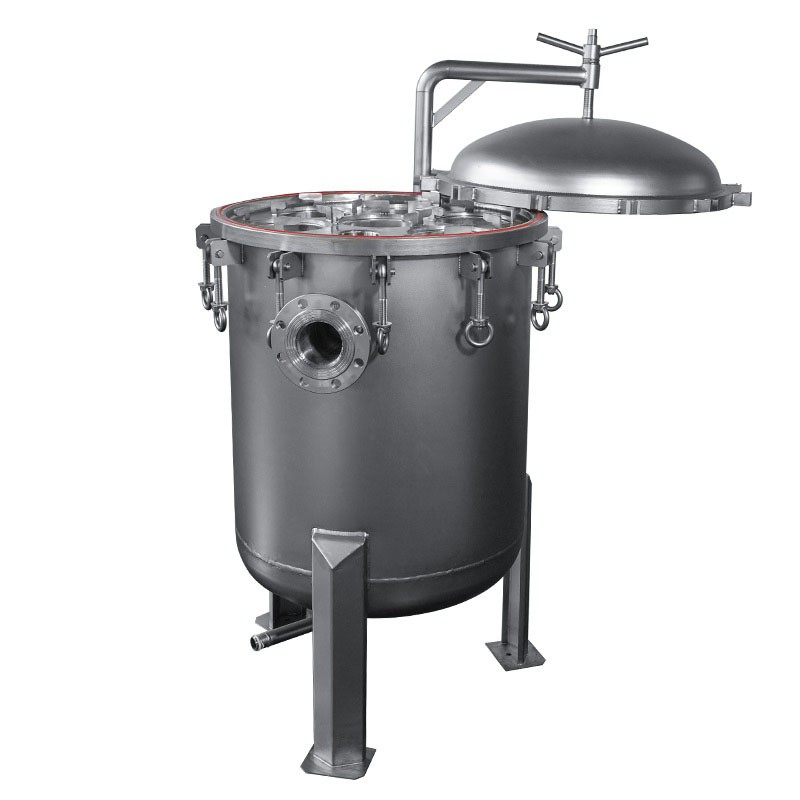

Bag filter is a pressure type filtering device, which mainly consists of filter cylinder, filter cylinder cover, stainless steel filter bag reinforcing mesh and other main components. The filtrate flows into the filter bag through the side inlet pipe of the filter shell. The filter bag itself is installed in the reinforcing mesh basket. The qualified filtrate can be obtained when the liquid permeates through the filter bag with the required fineness level, and the impurity particles are intercepted by the filter bag. It is very convenient to replace the filter bag. There is basically no material consumption for filtering.

Application

• Pharmaceutical field: recovering catalyst, removing active carbon, recovering expensive active raw materials, removing protein in plasma, filtering hormone, filtering vitamin chain lifter, filtering PH value adjustment solution, filtering plant extract solution, filtering pharmaceutical syrup, pre filtering crystal solution, and filtering cough medicine.
• Water treatment: remove impurities in mineral water; Filtration of raw water; Filter impurities in the cooling system; Remove scale or calcification in the water pipe; Chemicals used for filtering wastewater; Pre protection of RO membrane.
• Metal processing field: hydraulic oil filtration; Coolant circulating filtration; Recovery of precious metals (aluminum, silver, platinum);Filter workpiece phosphating liquid; filter anti-rust oil; filter ultra-fine grinding oil; remove oil from cutting fluid and cleaning fluid.
• Resin paint, coating, adhesive and other coatings: electrophoretic paint filtration; Filtration of spray water, varnish and finish filtration; Remove suspended agglomerates; Remove the ball milling filler; Remove the gel in acrylic adhesive; Remove resins and crystals; Remove the agglomeration of the adhesive coating; Filtration of hot melt polymer; Remove PVA agglomerate; Filtration during degreasing; Filtration of phosphating liquid; Filter metallic pigments.
• Electronic industry: filtration of cooling water; removal of zinc deposits in zinc solution; removal of impurities in electrolytic copper foil stabilization tank; filtration of chip grinding wastewater.
