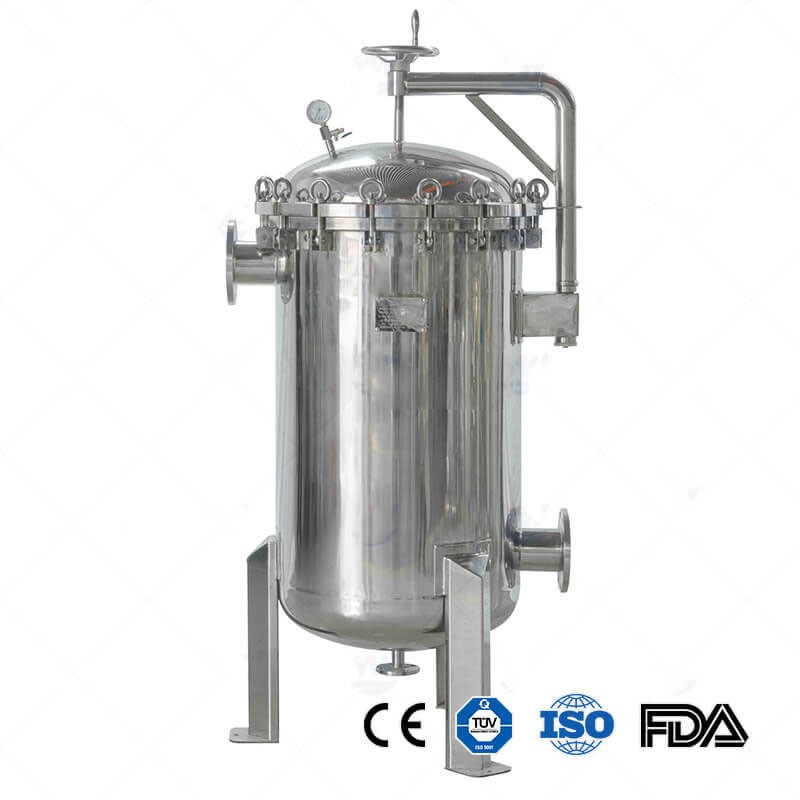

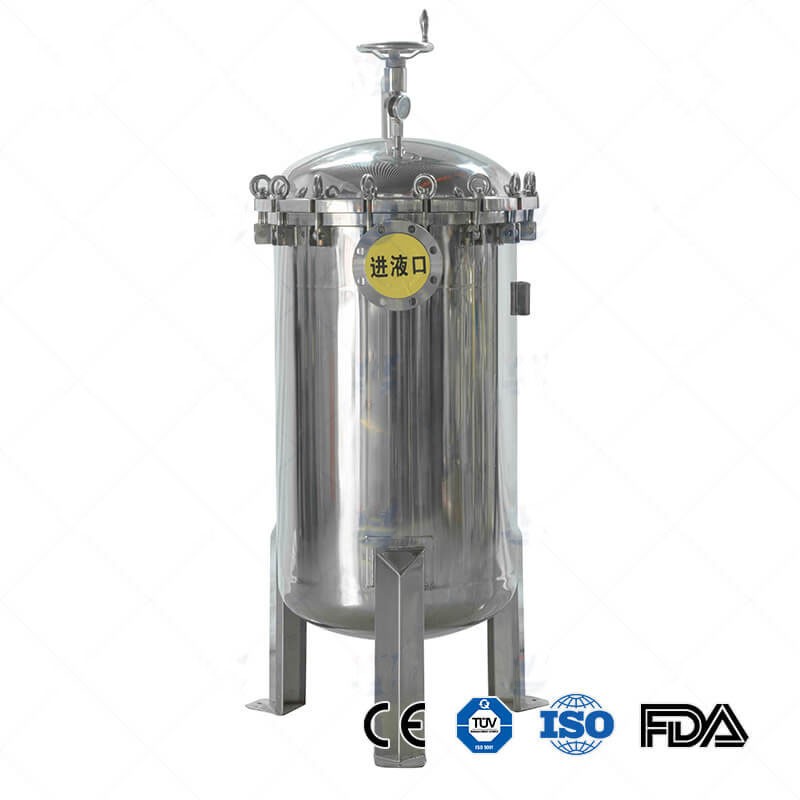

SS Water Bag Filter Housing For Water Filtration And Bag Filter Systems
- Stainless Steel / Carbon Steel / PP
- 2-24
- 1-12m2
- 70-840(t/h)
- 0.5Mpa
- 0.5μm
- Description
Introduction
Water bag filter are ideal for filtration jobs with heavy demands on flow rates and space. Water bag filter remove everything from sediment to other solids to some forms of liquid from the water in both commercial use and industrial applications.
The bag filters have a robust design, which makes them suitable for both cold, hot, acid and basic liquids. With their superior holding capacity, high flow rate, and easy replacement, bag filter systems are among the top choices for water filtration.
Water bag filter has several significant advantages. These include:
- Filtering large volumes of water at high flow rates
- High dirt holding capacity
- Withstanding a variety of conditions
- Easy to install and replace
- One of the most cost-effective methods
- Easy to install and maintain
Benefits of water bag filter used for water filtration
Few other products on the market can withstand high flow rates while keeping low cost. Although there are more powerful filtration methods on the market, none of them can achieve the flow rates that bag filters can withstand, nor are they cost-effective.
Specification
| Models | No. of filter bags |
Filtration Area (m²) |
Flow rate (m³/h) |
I/O Connections |
Max pressure (Mpa) |
Housing Diameter (mm) |
Total Height (mm) |
Housing Height (mm) |
|---|---|---|---|---|---|---|---|---|
| DL-2P2S | 2 | 1 | 70 | DN50 | 0.5 | 456 | 1572 | 1144 |
| DL-3P2S | 3 | 1.5 | 105 | DN80 | 0.5 | 508 | 1592 | 1190 |
| DL-4P2S | 4 | 2 | 140 | DN100 | 0.5 | 558 | 1632 | 1244 |
| DL-5P2S | 5 | 2.5 | 175 | DN150 | 0.5 | 608 | 1788 | 1254 |
| DL-6P2S | 6 | 3 | 210 | DN150 | 0.5 | 658 | 1854 | 1300 |
| DL-7P2S | 7 | 3.5 | 215 | DN150 | 0.5 | 710 | 1875 | 1340 |
| DL-8P2S | 8 | 4 | 280 | DN150 | 0.5 | 760 | 1922 | 1404 |
| DL-10P2S | 10 | 5 | 350 | DN200 | 0.5 | 910 | 2004 | 1430 |
| DL-12P2S | 12 | 6 | 420 | DN200 | 0.5 | 962 | 2064 | 1460 |
| DL-14P2S | 14 | 7 | 490 | DN200 | 0.5 | 1012 | 2124 | 1490 |
| DL-16P2S | 16 | 8 | 560 | DN250 | 0.5 | 1112 | 2146 | 1512 |
| DL-18P2S | 18 | 9 | 630 | DN250 | 0.5 | 1162 | 2225 | 1595 |
| DL-20P2S | 20 | 10 | 700 | DN250 | 0.5 | 1212 | 2280 | 1640 |
| DL-22P2S | 22 | 11 | 770 | DN250 | 0.5 | 1366 | 2320 | 1694 |
| DL-24P2S | 24 | 12 | 840 | DN300 | 0.5 | 1416 | 2358 | 1748 |
