Small single bag filter housing with movable trolley
- Stainless Steel
- 0.25-0.5m²
- 10-40(t/h)
- 0.5Mpa
- 0.5μm
- Description
Introduction

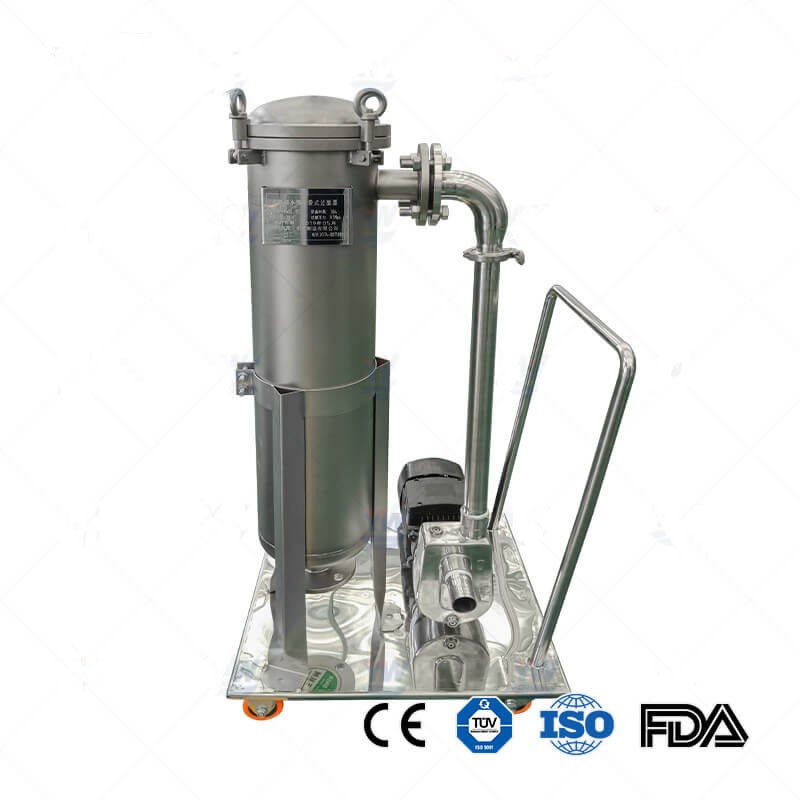

Movable trolley single bag filter housing is composed of bag filter housing, pump, pipe fittings, valves and other components installed on the small trolley. Movable trolley single bag filter housing structure is simple, light and flexible, easy for workers to operate, and can be moved to the production line at will for work.
Feature
- Main components such as the filter housing and trolley are made of stainless steel, which has a long service life, corrosion resistance, and does not pollute oil products.
- The unique design of the relief valve and combined valve block simplifies the pipeline components and process flow.
- Simple structure, simple operation, easy to move.
Specification
| Models | Filtration Area (m²) | Max Flow (t/h) | Volume (L) | I/O Connections | Max pressure (Mpa) | Housing Diameter (mm) | Total Height (mm) | Housing Height (mm) |
|---|---|---|---|---|---|---|---|---|
| 01# | 1 | 20 | 8 | DN40 | 0.5 | 220 | 220 | 568 |
| 02# | 1.5 | 40 | 17 | DN50 | 0.5 | 220 | 220 | 960 |
| 04# | 2 | 10 | 4 | DN32 | 0.5 | 159 | 159 | 568 |
