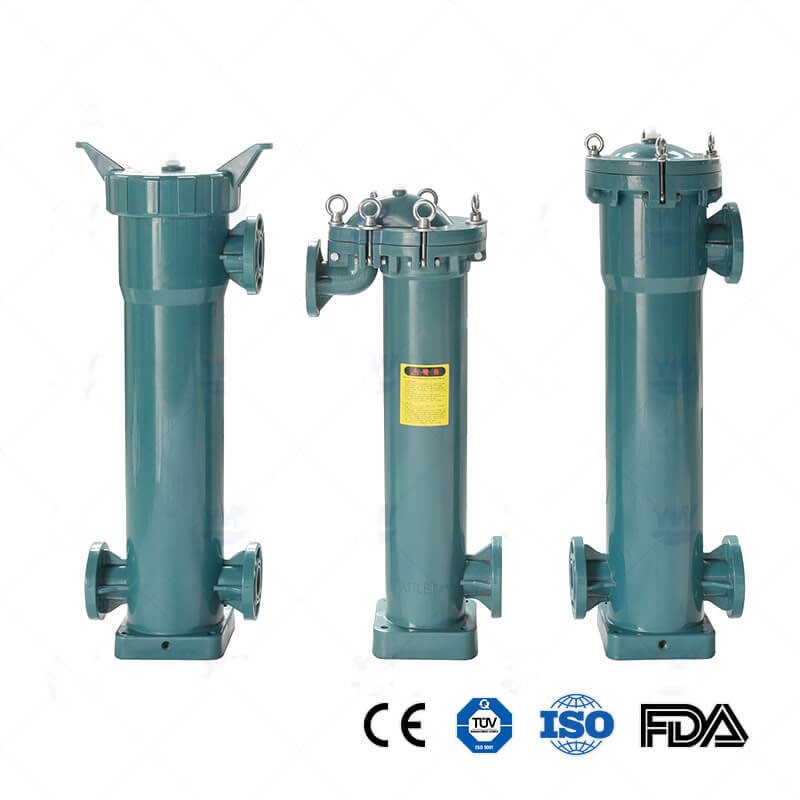

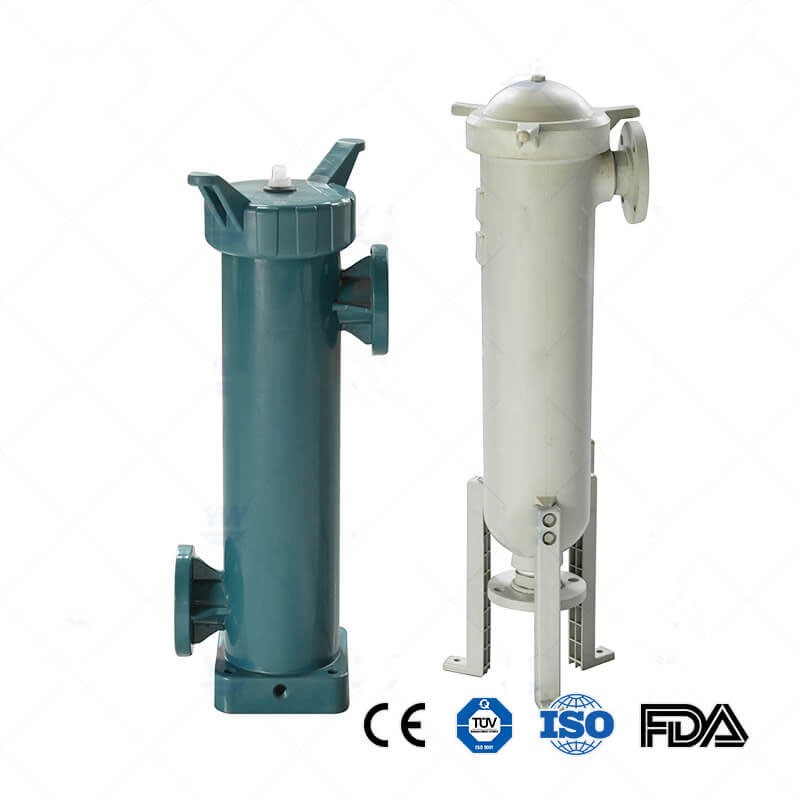

PP, Plastic, PVC Bag Filter Housing for Acid-base Solution Filtration
- PP,PPR,PPH,PVC
- 1-500(μm)
- 0.23-4(m²)
- 20-345(t/h)
- 0.25-0.4(Mpa)
- 1-8
- Description
Introduction
Yuwei PPH(Polypropylene Homopolymer) bag filter housings was made of PP reinforced polypropylene material, which is integrally injection-molded, no metal components to rust or corrode, without welding, no side leakage, easy to install and maintain. The unique one-piece molded body has no seams, welds or crevices to trap particles and is easy to clean.
Feature
- Acid and alkali resistance, high temperature resistance
- Integrally injection-molded, no welding points, no leakage
- No tools required for use and maintenance, easy and quick to replace the filter bag
- PPH filter bag housings are compatible with international standard water filter bags
- All sealing rings of PPH plastic filter bag housing are made of fluorine rubber, with good corrosion resistance
Specification
| Model | Bag QTY (Pcs) | Working Pressure (Mpa) | Max Flow (t/h) | Filtering Area (m²) | Inlet/Outlet |
|---|---|---|---|---|---|
| YW-159PP-D | 1 | 0.4 | 20 | 0.23 | DN50 |
| YW-175PP-D | 1 | 0.4 | 32 | 0.25 | DN50 |
| YW-219PP-D | 1 | 0.4 | 40 | 0.5 | DN65 |
| YW-219PPR-D | 1 | 0.6 | 40 | 0.5 | DN65 |
| YW-500PP-2D | 2 | 0.4 | 90 | 1 | DN100 |
| YW-630PP-3D | 3 | 0.4 | 135 | 1.5 | DN100 |
| YW-630PP-4D | 4 | 0.4 | 180 | 2 | DN100 |
| YW-710PP-5D | 5 | 0.4 | 225 | 2.5 | DN100 |
| YW-700PP-6D | 6 | 0.4 | 270 | 3 | DN100 |
| YW-800PP-7D | 7 | 0.25 | 315 | 3.5 | DN100 |
| YW-800PP-8D | 8 | 0.25 | 345 | 4 | DN50 |
Application
PPH plastic filter housings are made of PP reinforced polypropylene material, which can be used for the filtration of strong acids and alkalis such as hydrochloric acid, sulfuric acid, aqua regia, etc.
- Chemical Industry
- Inks and Coatings
- Acid-base Solution Filtration
- Electroplating Filtration Industry
- Food Industry
- Industrial Wastewater
- Pharmaceutical Production
