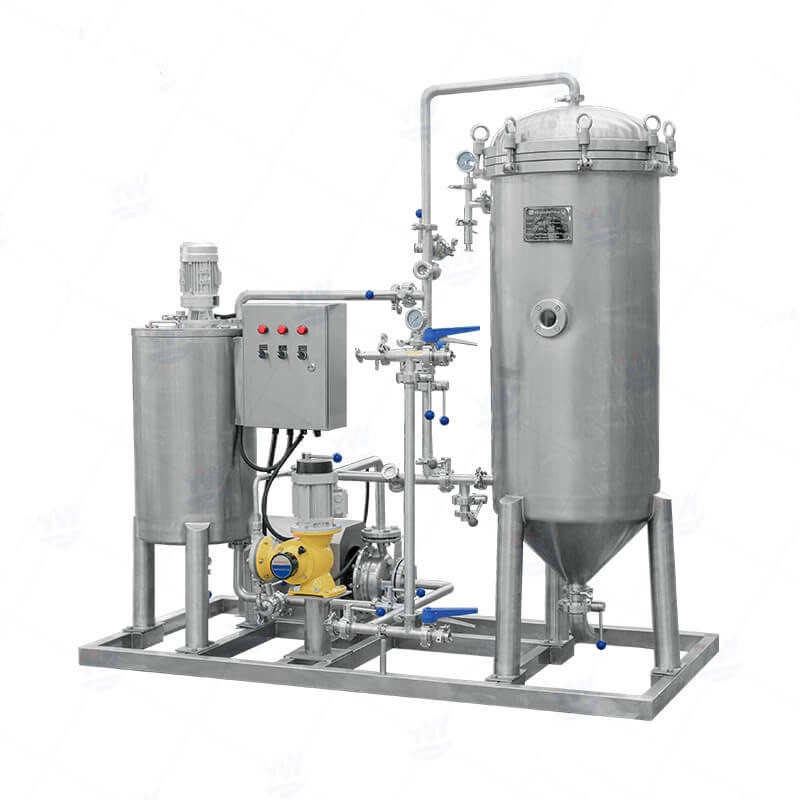

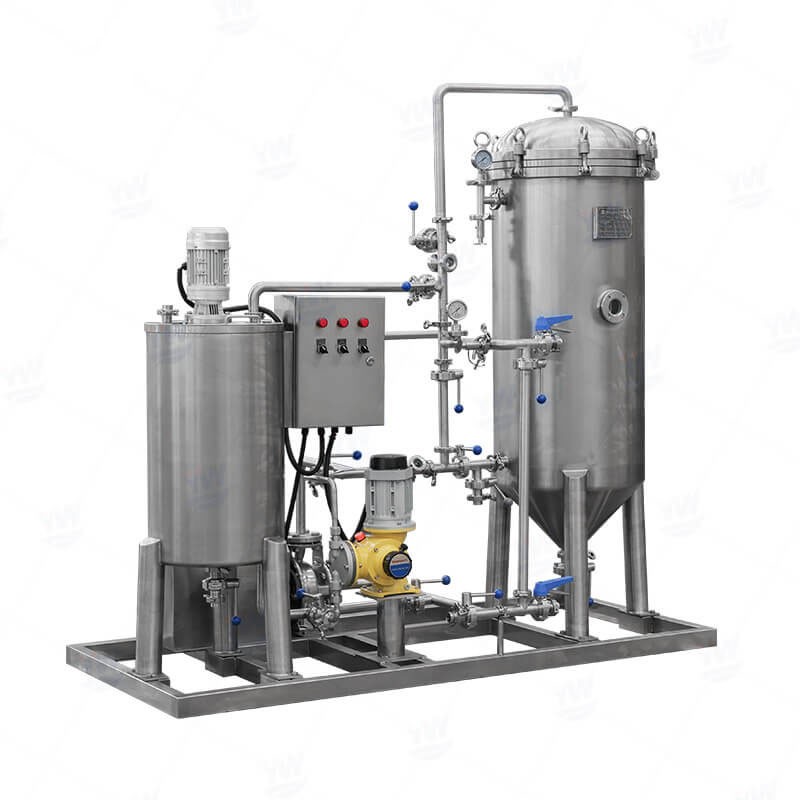

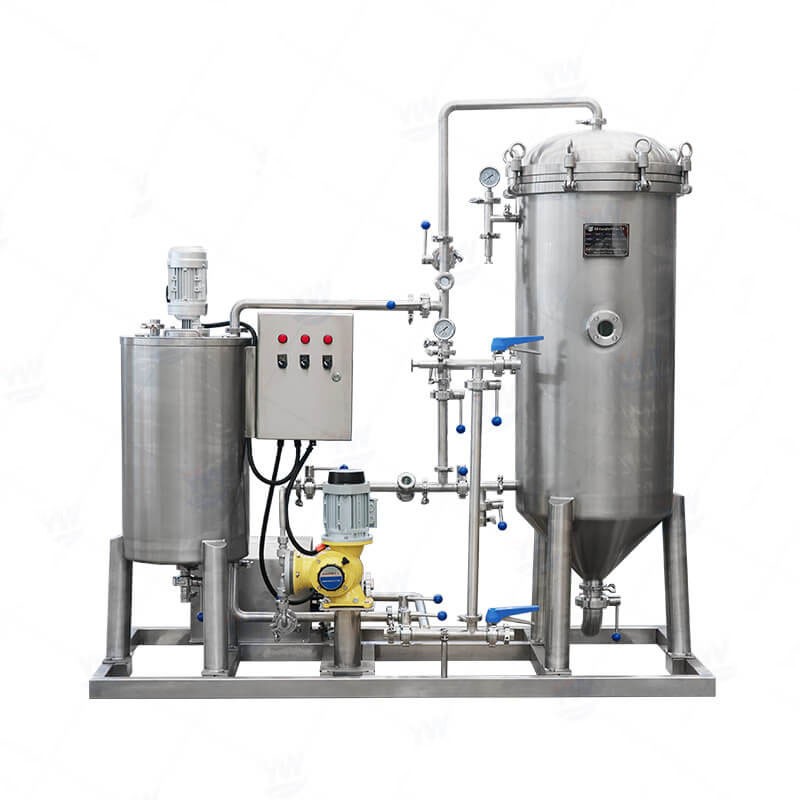

Automatic Candle Type Filter for Sugar and Syrup Industry
- 0.5-800μm

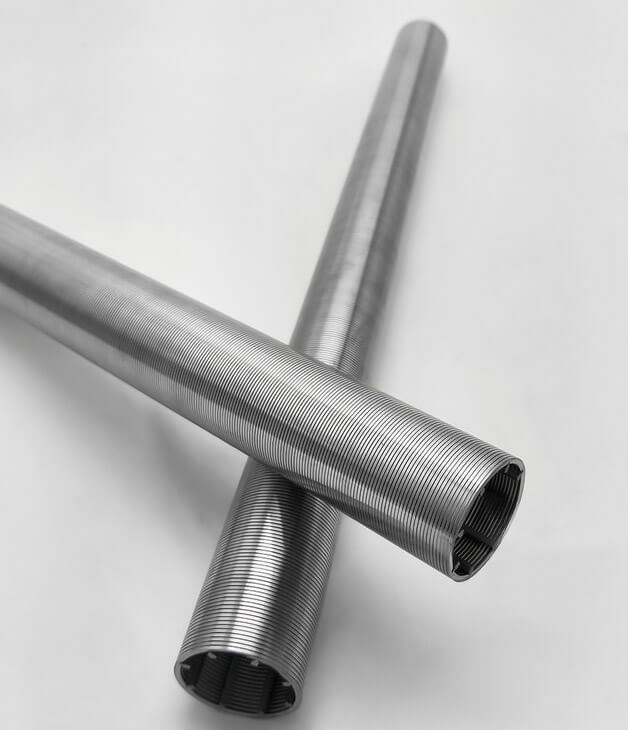

- candle filter cartridge
- S.S 304, 316L, Carbon steel
- 1 Year
- 1-60m²
- 1-200°C
- Description
- Video
Overview
The Automatic Candle Filter is a closed, fully automatic pressure filtration device. Its interior consists of multiple “candle filter elements,” making it suitable for high-precision, continuous or semi-continuous liquid clarification filtration.
In the sugar and syrup industry, it is primarily used to : Remove suspended impurities, activated carbon, pigment particles, and fine solids, thereby enhancing the clarity and purity of sugar solutions.
Key Advantages
- Direct filtration and pre-coating filtration can be selected according to particle size.
- Multi-level filtration accuracy up to 0.5 microns.
- Competent for high precision, high solids content (limited to 5%) and high viscosity.
Typical Application Scenarios
- Activated carbon decoloration for granulated sugar and glucose
- Filtration of sucrose, fructose syrup, high fructose syrup, glucose syrup, beet sugar, Maple syrup, honey, etc
- Cane sugar mills and raw sugar refineries filtration.
- Raw sugar re-melt.
- Thin juice filtration and polishing.

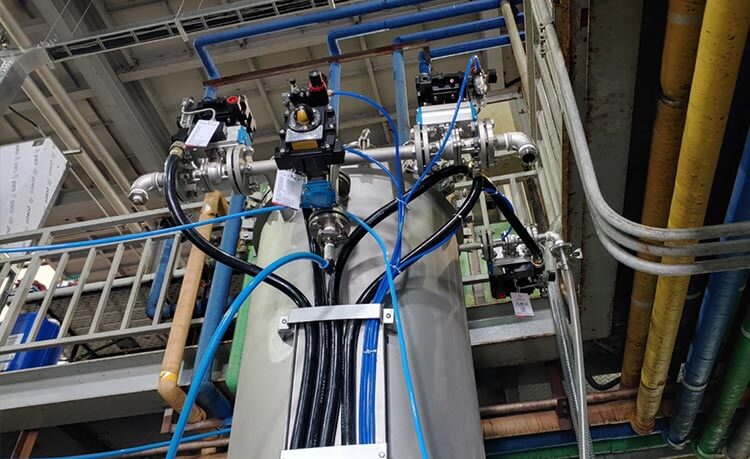

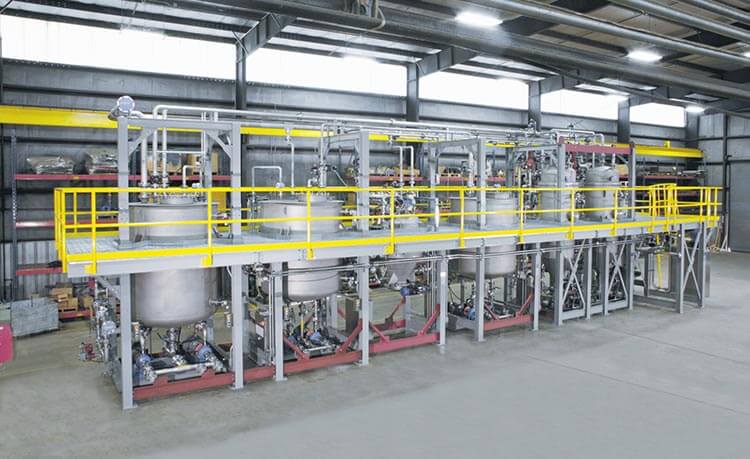

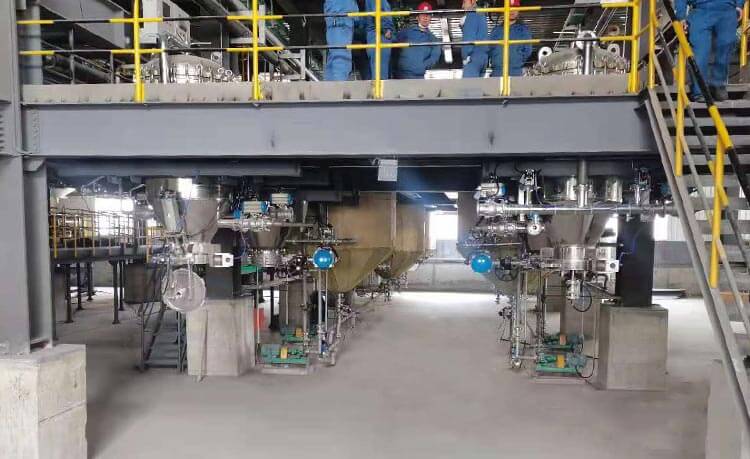

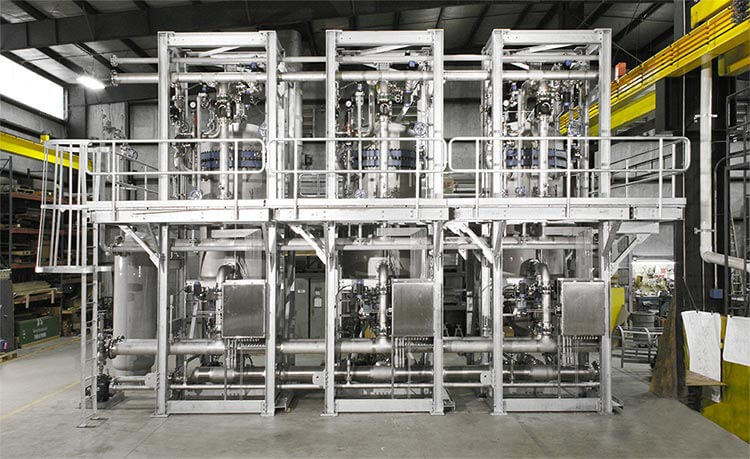

Our Case
Specification
| Model | Cartridge QTY | Cartridge Size(mm) | Filtering Area(m2) | Capacity(t/h) | Housing Volume(L) | Inlet | Cake Discharging Outlet | Total Height(mm) |
|---|---|---|---|---|---|---|---|---|
| DZZS-1 | 7 | 90*500 | 1 | 2.2 | 140 | DN25 | DN150 | 1902 |
| DZZS-1.5 | 10 | 90*500 | 1.5 | 3.3 | 180 | DN25 | DN200 | 1928 |
| DZZS-2 | 7 | 90*1000 | 2 | 4.4 | 220 | DN32 | DN150 | 2402 |
| DZZS-3 | 10 | 90*1000 | 3 | 6.6 | 280 | DN40 | DN200 | 2428 |
| DZZS-4 | 14 | 90*1000 | 4 | 8.8 | 400 | DN40 | DN200 | 2502 |
| DZZS-6 | 19 | 90*1000 | 6 | 13.2 | 560 | DN50 | DN250 | 2578 |
| DZZS-8 | 24 | 90*1000 | 8 | 18 | 740 | DN65 | DN250 | 2644 |
| DZZS-12 | 40 | 90*1000 | 12 | 26 | 1200 | DN65 | DN300 | 2854 |
| DZZS-18 | 64 | 90*1000 | 18 | 40 | 1800 | DN80 | DN400 | 2904 |
| DZZS-30 | 106 | 90*1000 | 30 | 66 | 3000 | DN100 | DN500 | 3440 |
| DZZS-40 | 140 | 90*1000 | 40 | 88 | 3815 | DN150 | DN500 | 3560 |
| DZZS-60 | 190 | 90*1000 | 60 | 132 | 5700 | DN150 | DN500 | 3700 |
Selection Notes (Limitations)
- Equipment investment costs are relatively high. Automation systems, pressure vessel structures, and control systems result in higher initial investment compared to traditional plate-and-frame filters.
- Operational management demands are relatively high. Proper control of precoat aid application and operating parameters is required; otherwise, filtration efficiency will be compromised.
