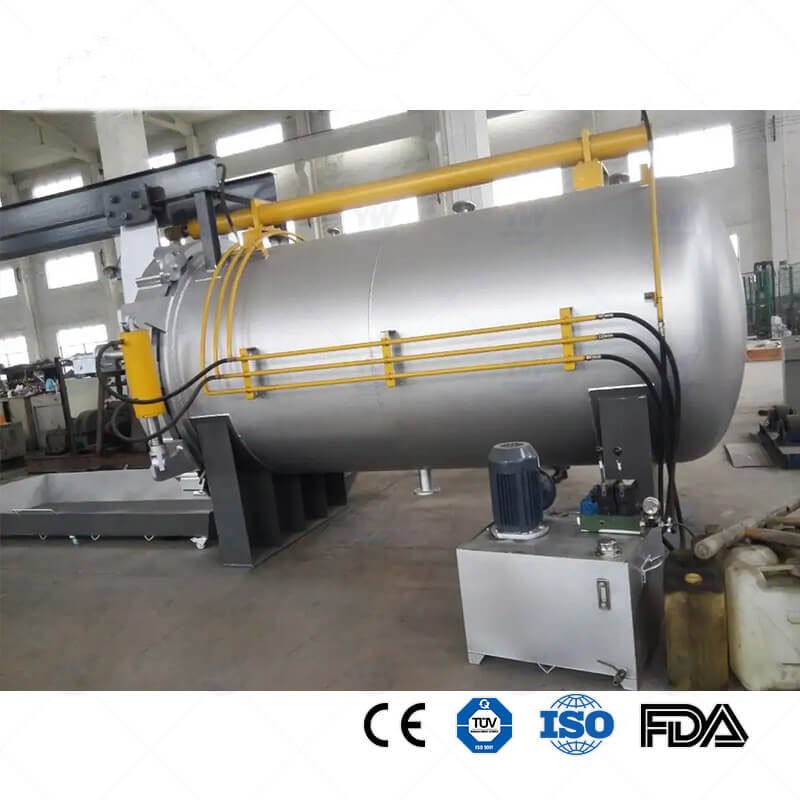

Horizontal pressure leaf filter
- Stainless Steel,Carbon Steel
- 10-200(μm)
- 2-200(m²)
- 1-800(t/h)
- 0.1-0.4(Mpa)
- Description
Introduction
Horizontal pressure leaf filter is an enclosed filtration system and can be fully automated. Horizontal pressure leaf filter for high flow fluid with low solid content, it takes a larger filter area than vertical pressure leaf filter. It is widely used in chemical, pharmaceutical oil and food industries for the filtration of liquids.
Horizontal pressure leaf filters are an effective and reliable method for the filtration of liquids in industrial settings. However, they may be less suitable for smaller scale operations due to their relatively large size and high cost compared to other filtration methods.
Feature
- A variety of filter aids can be added and the filter area is up to 200 m².
- Horizontal structure to let the filter leaves are able be drawn out, it’s greatly convenient for discharging and cleaning.
- Automatic filter cake discharge.
- The filter can operate in both dry and wet cake discharge modes.
- Fully closed structure and fully automated operation reduce environmental pollution and labor costs.
- Suitable for batch processing applications requiring high flow rates with small solids removal.
Specification
| Model | Filter cake volume | Processing power | Workpressure | Filtering cylinder volume | I/O Connection | Discharging outlet | Filter spacing | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Grease | Resin | Drinks | ||||||||
| YWBL-2 | 30L | 0.4-0.6(t/h) | 1-1.5(t/h) | 1-2(t/h) | 0.1-0.4(Mpa) | 120L | DN25 | DN100 | 50mm | 150Kg |
| YWBL-4 | 60L | 0.8-1.2(t/h) | 2-3(t/h) | 2-4(t/h) | 250L | DN40 | DN125 | 50mm | 180Kg | |
| YWBL-7 | 105L | 1.4-2(t/h) | 3-5(t/h) | 4-8(t/h) | 420L | DN40 | DN150 | 50mm | 326Kg | |
| YWBL-10 | 150L | 2-3(t/h) | 5-8(t/h) | 5-10(t/h) | 890L | DN50 | DN200 | 70mm | 474Kg | |
| YWBL-12 | 240L | 2.4-3.6(t/h) | 6-9(t/h) | 6-12(t/h) | 1190L | DN50 | DN250 | 70mm | 554Kg | |
| YWBL-15 | 300L | 3-5(t/h) | 7-12(t/h) | 8-16(t/h) | 1580L | DN50 | DN250 | 70mm | 815Kg | |
| YWBL-20 | 400L | 4-6(t/h) | 10-15(t/h) | 10-20(t/h) | 1770L | DN65 | DN250 | 70mm | 910Kg | |
| YWBL-25 | 500L | 5-7(t/h) | 12-18(t/h) | 12-24(t/h) | 2200L | DN65 | DN300 | 70mm | 1024Kg | |
| YWBL-30 | 600L | 6-9(t/h) | 14-22(t/h) | 15-30(t/h) | 2770L | DN65 | DN300 | 70mm | 1165Kg | |
| YWBL-36 | 720L | 7-10(t/h) | 16-24(t/h) | 18-36(t/h) | 2870L | DN80 | DN300 | 70mm | 1202Kg | |
| YWBL-40 | 800L | 8-12(t/h) | 20-30(t/h) | 20-40(t/h) | 3500L | DN80 | DN350 | 70mm | 1342Kg | |
| YWBL-45 | 900L | 9-13(t/h) | 22-32(t/h) | 22-44(t/h) | 3630L | DN100 | DN350 | 70mm | 1422Kg | |
| YWBL-52 | 1040L | 10-15(t/h) | 25-40(t/h) | 26-52(t/h) | 4380L | DN100 | DN350 | 75mm | 1900Kg | |
| YWBL-60 | 1200L | 12-18(t/h) | 38-42(t/h) | 30-60(t/h) | 5100L | DN100 | DN400 | 75mm | 2114Kg | |
| YWBL-70 | 1400L | 14-20(t/h) | 35-50(t/h) | 35-70(t/h) | 6940L | DN125 | DN400 | 80mm | 2662Kg | |
| YWBL-80 | 1600L | 16-24(t/h) | 40-60(t/h) | 40-80(t/h) | 8300L | DN125 | DN400 | 80mm | 3882Kg | |
Structure

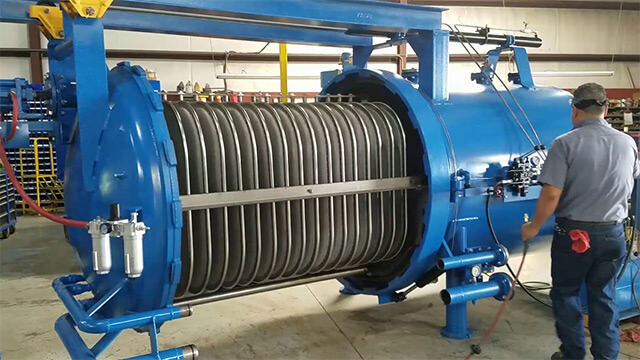

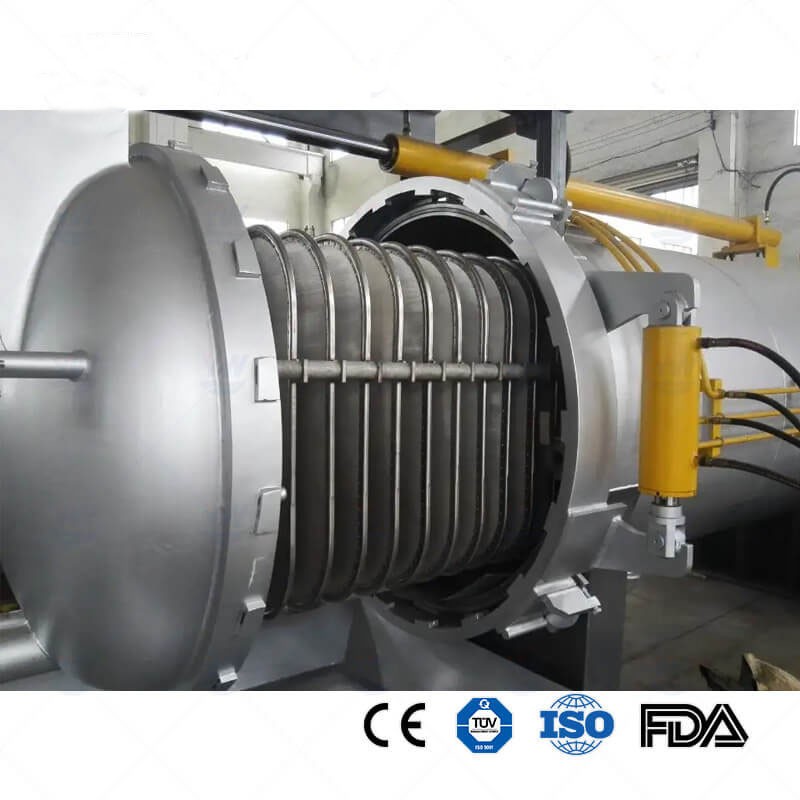

Horizontal pressure leaf filter (shell retraction or bundle retraction) consists of a filter housing, filter leaves, a pneumatic vibrator assembly, a support frame and a hydraulic power back for bonnet ring opening/closing and shell or bundle retraction.

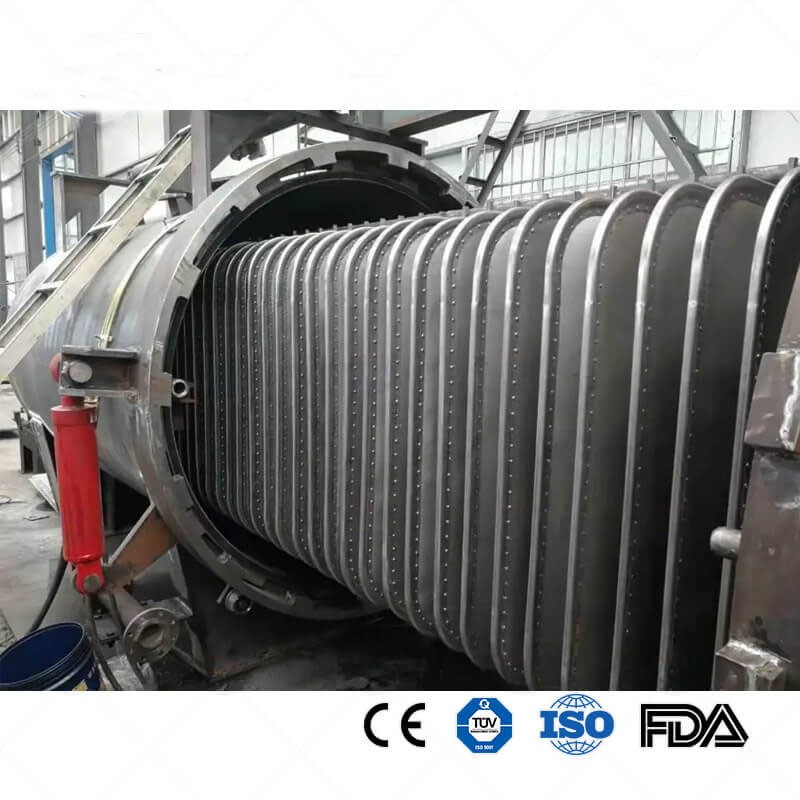

It consists of a horizontal vessel that contains a series of filter plates with vertical filter elements. The liquid to be filtered is pumped into the vessel and flows through the filter elements, which trap any solid particles or debris. The filtered liquid then flows out of the vessel and can be collected for further processing or disposal. Filter leaves are made of 5 layers of stainless-steel (or other metal) wire screen and enjoy a long service life and a low maintenance cost.
Cake Discharge
When filter cake needs to be recycled or disposed as solids, you may choose dry cake discharge, for example, sugar, cocoa or edible oil filtration, activated carbon removal, molten Sulphur filtration or catalyst recovery. Compressed air, inert gas or steam is commonly used for cake drying before discharging.
If the cake formation is too low for dry discharge, the disposal is cheap (regeneration for wet discharge is shorter) or the cake needs to be transported via a pump, you may choose wet cake discharge, for example, saline water filtration.
Application
- Food & beverage: Edible oil coarse filtration, bleached oil filtration, gelatin, vinegar, starch, sugar juice, sweet water, etc.; beer, juice, wine, milk, etc.
- Petrochemicals: Diesel oil, lubricating oil, petroleum wax, mineral oil products, etc.
- Fine chemicals: Resins, varnishes, dyes, lacquers, etc.
- Organic chemicals: A variety of organic acids, alcohols, benzene, aldehydes, etc.
- Inorganic chemicals: Bromine water, potassium cyanide, fluorite, etc.
