SS Single Cartridge Filter Housing (10 Inch, 20 Inch, Polypropylene Filter Cartridge)
- Single Cartridge Filter Housing
- SUS316L, SUS304
- PP pleated filter cartridge
- 0.1-100μm
- Description

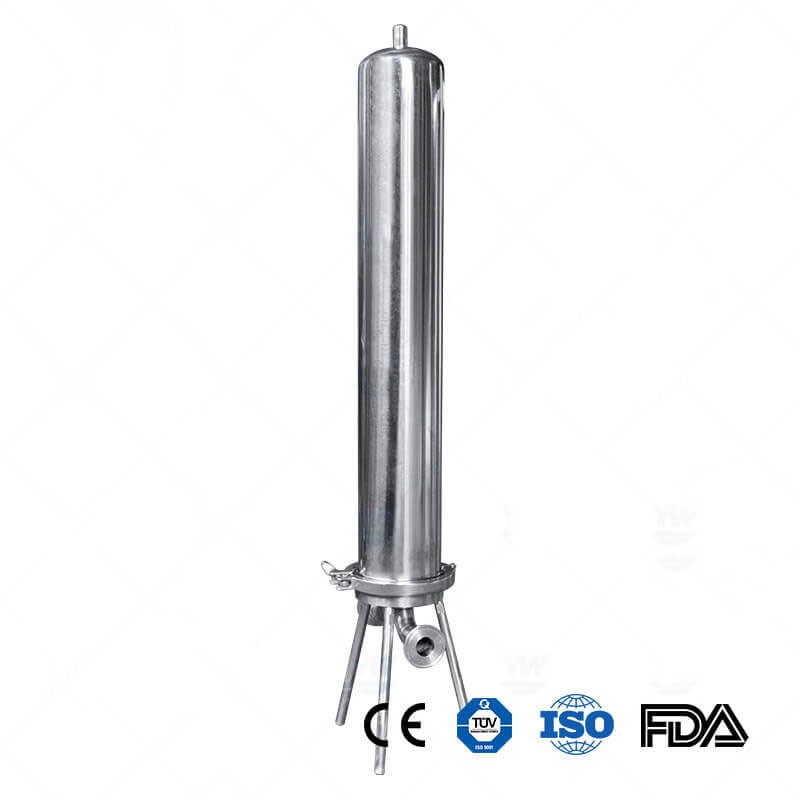

SS Single Cartridge Filter Housing
SS Single Cartridge Filter Housing is a small flow and high-quality sanitary grade filter. The sanitary single filter housing is designed for the industries and applications which have higher sanitary requests. These filter housings are used in the food, beverage, and electronics sectors of the economy.
Features of SS Single Cartridge Filter Housing
- The unique structure and ultra-high polishing level, ensures there is no dead corner on the inner and outer surfaces and conforms to the requirements of GMP.
- With excellent surface and maximum corrosion resistance.
- The filter housing meets the quality standards for preventing bacterial contamination.
Specification
| Model | Max. flow Water (m³/h) | Diameter of Housing | Height | I/O Connections |
|---|---|---|---|---|
| YWLX10-1 | 0.1-0.3 | 102mm | 500mm | 25-32DN |
| YWLX20-1 | 0.3-0.5 | 102mm | 750mm | 25-32DN |
| YWLX30-1 | 1.2 | 102mm | 1000mm | 25-32DN |
| YWLX40-1 | 1.5 | 102mm | 1250mm | 25-32DN |
| YWLX10-3 | 1.2 | 160mm | 650mm | 25-40DN |
| YWLX20-3 | 1.5 | 160mm | 900mm | 25-40DN |
| YWLX30-3 | 3.6 | 160mm | 1150mm | 25-40DN |
| YWLX40-3 | 4.5 | 160mm | 1400mm | 25-40DN |
| YWLX20-5 | 2.5 | 200mm | 900mm | 25-50DN |
| YWLX30-5 | 6 | 200mm | 1150mm | 25-50DN |
| YWLX40-5 | 7.5 | 200mm | 1400mm | 25-50DN |
| YWLX20-7 | 3.5 | 230mm | 900mm | 25-50DN |
| YWLX30-7 | 8.4 | 230mm | 1150mm | 25-50DN |
| YWLX40-7 | 10.5 | 230mm | 1400mm | 25-50DN |
| YWLX20-9 | 4.5 | 300mm | 900mm | 25-50DN |
| YWLX30-9 | 10.8 | 300mm | 1150mm | 25-50DN |
| YWLX40-9 | 13.5 | 300mm | 1400mm | 25-50DN |
| YWLX20-12 | 6 | 300mm | 900mm | 25-50DN |
| YWLX30-12 | 14.4 | 300mm | 1150mm | 25-50DN |
| YWLX40-12 | 18 | 300mm | 1400mm | 25-50DN |
| YWLX20-15 | 7.5 | 300mm | 900mm | 25-65DN |
| YWLX30-15 | 18 | 350mm | 1150mm | 25-65DN |
| YWLX40-15 | 22.5 | 350mm | 1400mm | 25-65DN |
| YWLX30-20 | 24 | 400mm | 1150mm | 25-65DN |
| YWLX40-20 | 30 | 400mm | 1400mm | 25-65DN |
| YWLX30-25 | 30 | 450mm | 1150mm | 50-80DN |
| YWLX40-25 | 37.5 | 450mm | 1400mm | 50-80DN |
| YWLX30-30 | 36 | 500mm | 1500mm | 50-80DN |
| YWLX40-30 | 45 | 500mm | 1750mm | 50-80DN |
| YWLX30-35 | 42 | 550mm | 1500mm | 50-100DN |
| YWLX40-35 | 52.5 | 550mm | 1750mm | 50-100DN |
| YWLX30-40 | 48 | 600mm | 1500mm | 50-100DN |
| YWLX40-40 | 60 | 600mm | 1750mm | 50-100DN |
| YWLX40-60 | 90 | 700mm | 1750mm | 50-100DN |
| YWLX40-80 | 120 | 800mm | 1750mm | 50-100DN |
| YWLX40-100 | 150 | 900mm | 1750mm | 50-125DN |
Applications
As a high-standard sanitary filter housing, it can be widely used in various industries and applications. Such as prefltration of various antibiotic and other liquids in the pharmaceutical industry. The filtration of alcohol, mineral water, and drinking water in food & beverage industry is also available. Oilfield water injection filtration in the petroleum industry and prefiltration for high-purity water in the electronics industry can adopt this filter housing. Additionally, it is suitable for the filtration of various organic solvents, acids and lyes.
