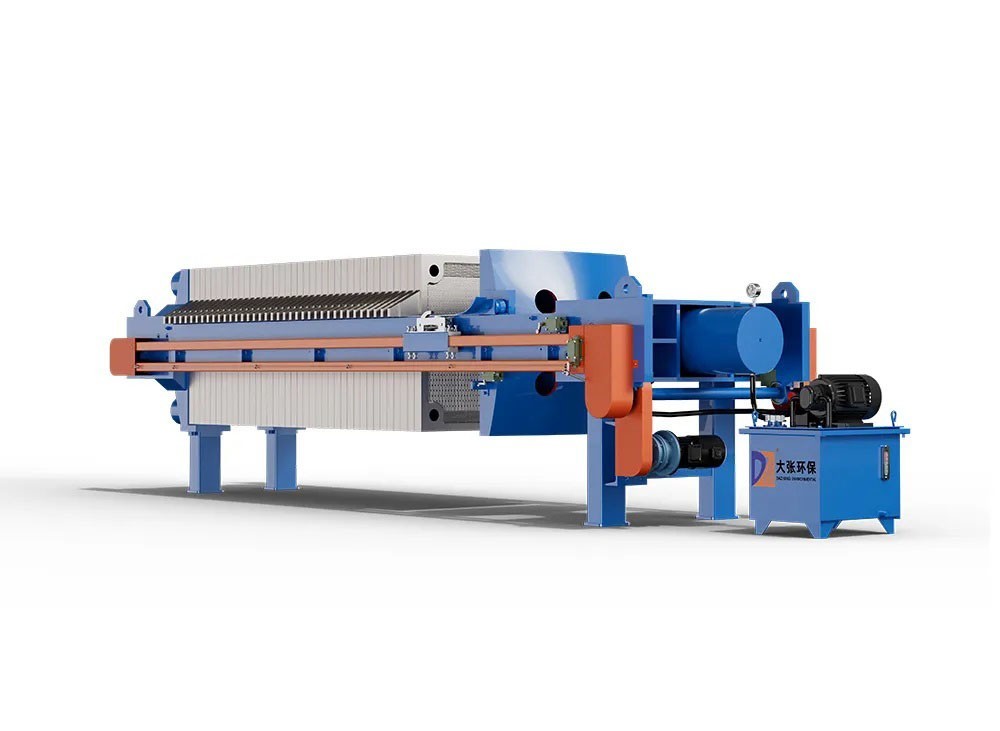

Cast Iron Filter Press

Key Advantages

• High strength, resistance to high temperatures and high pressure.
• The cast iron housing ensures that the product can withstand harsh operating conditions and will have a long service life.

Applications

Dehydration of slurries for the oil industry and other sectors where high-temperature filtration is required.

Some materials are characterized by very high temperatures, such as 120 °C and above. As a result, a standard polypropylene filter press cannot ensure proper operation, and a cast iron filter press must be considered. This equipment and its filter plates are made of high-quality cast iron with spheroidal graphite.

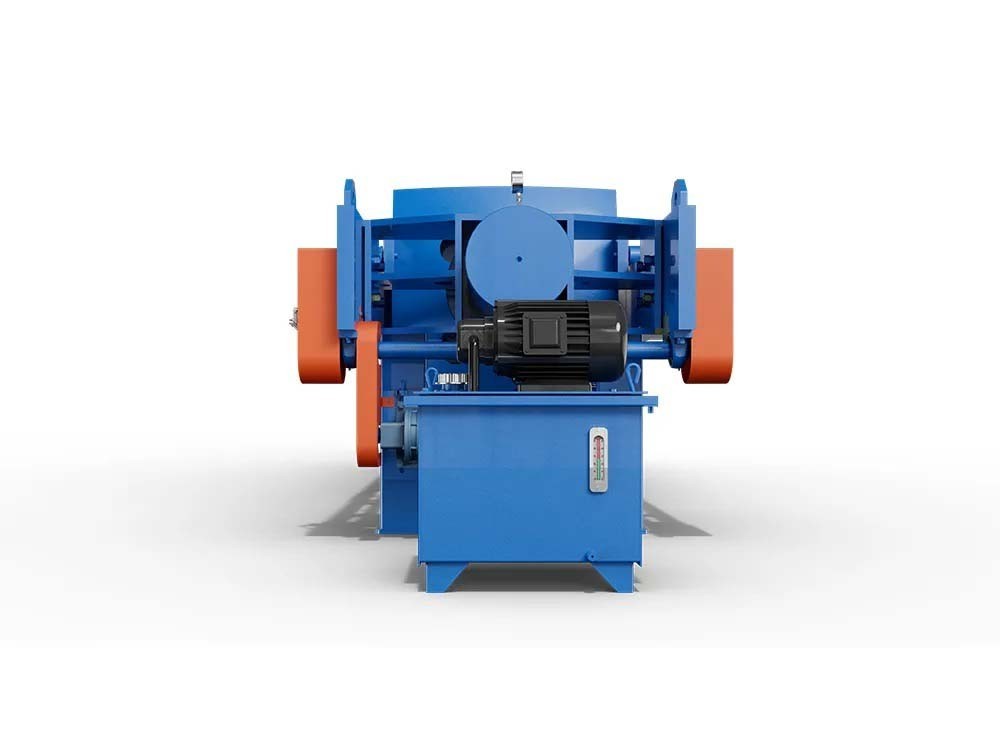

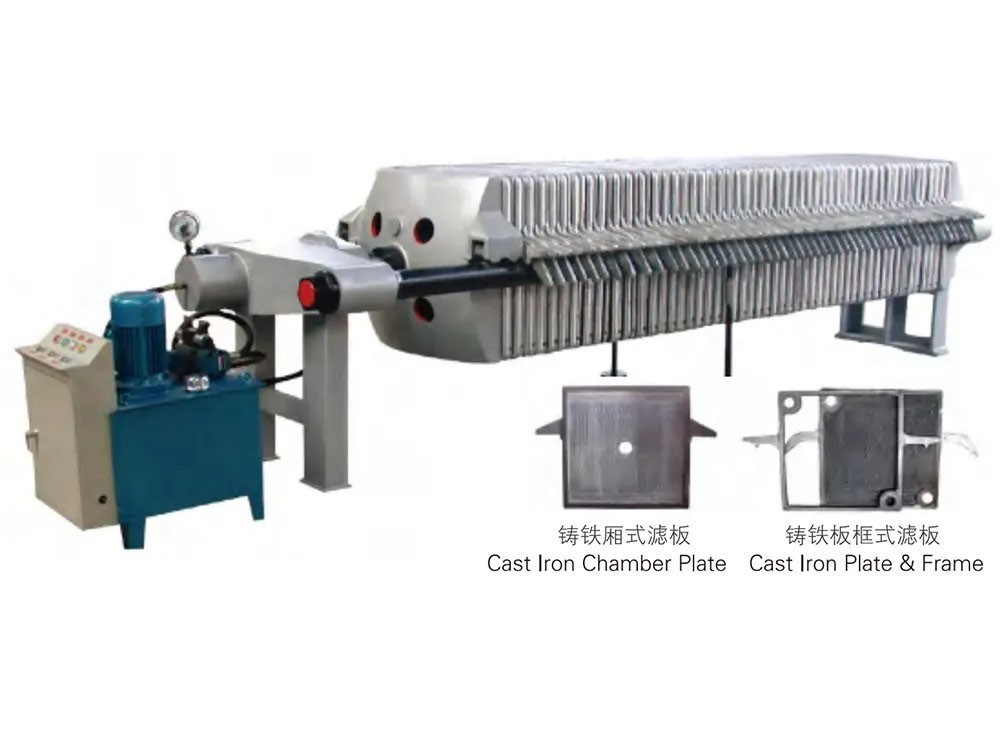

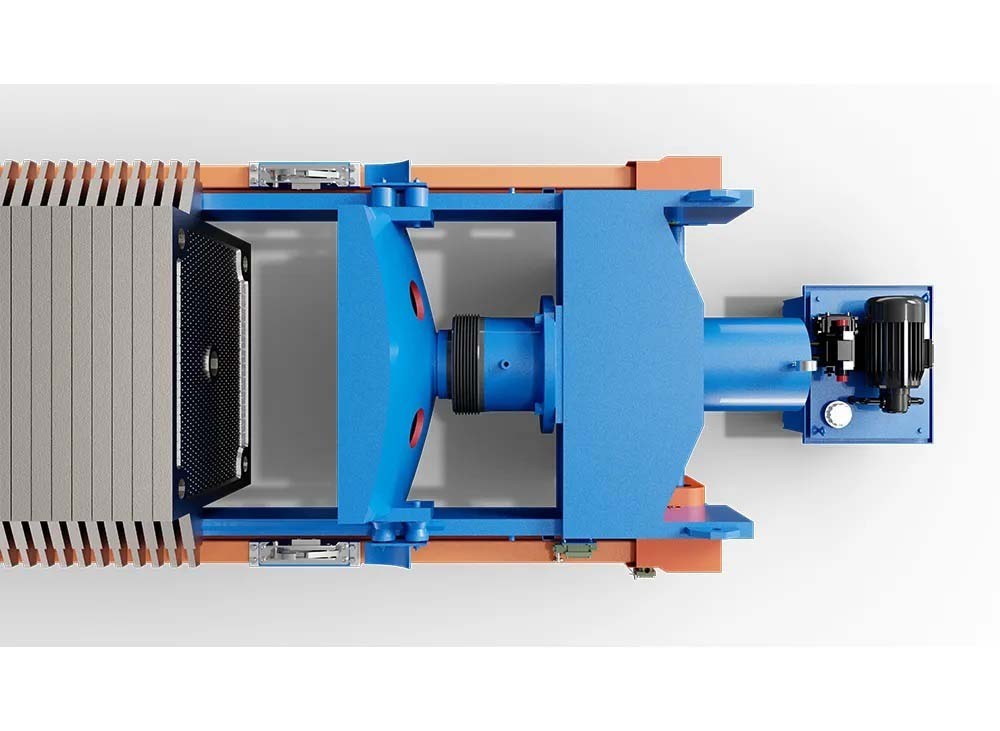

Depending on the method of sludge discharge, cast iron filter presses are available in automatic and manual types. Unlike the plates in polypropylene filter presses, cast iron filter plates are very heavy and difficult to move by hand; therefore, if the filter plate size exceeds 630 mm, we generally recommend an automatic cast iron filter press to save on labor costs. There are two types of plates for different filtration requirements: chamber-type and plate-and-frame filter plates. Typically, a cast iron filter press uses a motor-driven hydraulic clamping system to achieve optimal clamping performance.

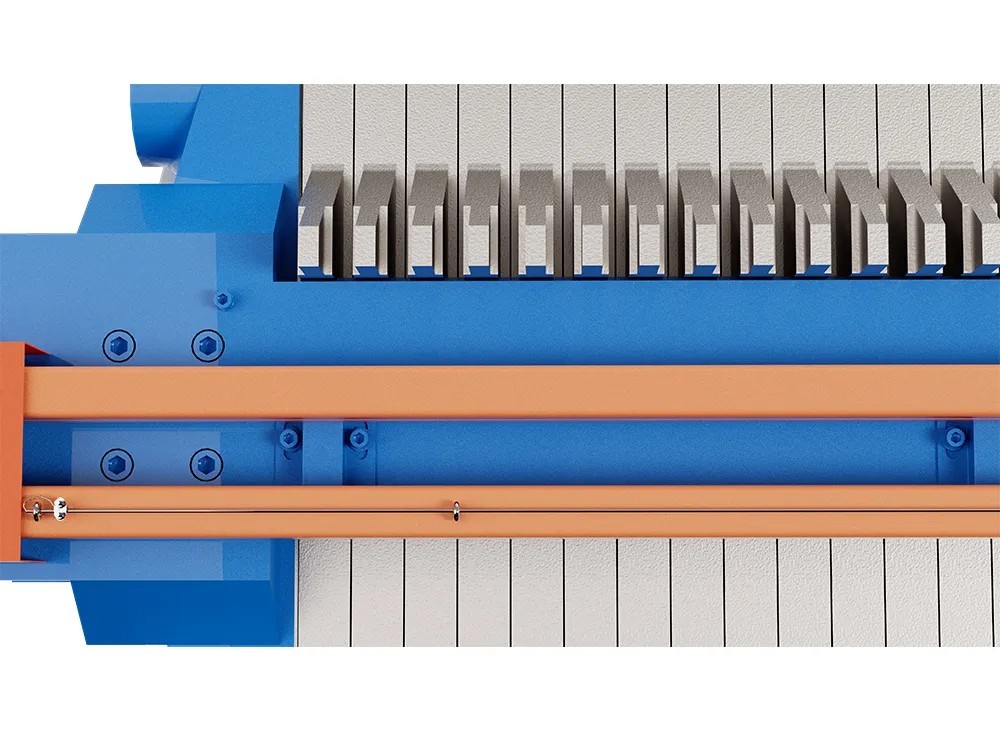

In fact, in addition to the stack of intermediate plates, its head and tail plates are also made of spheroidal graphite cast iron. Our cast iron plate filter press utilizes advanced casting technologies, giving it superior wear resistance. To ensure the highest quality, each steel filter plate is milled to guarantee a smooth surface. This is the only way to achieve optimal chamber sealing, allowing the unit to withstand higher filtration pressures. If your material is flammable, we can provide an explosion-proof design. Please contact us to get a quote directly from the filter press manufacturer.

Technical Specifications
