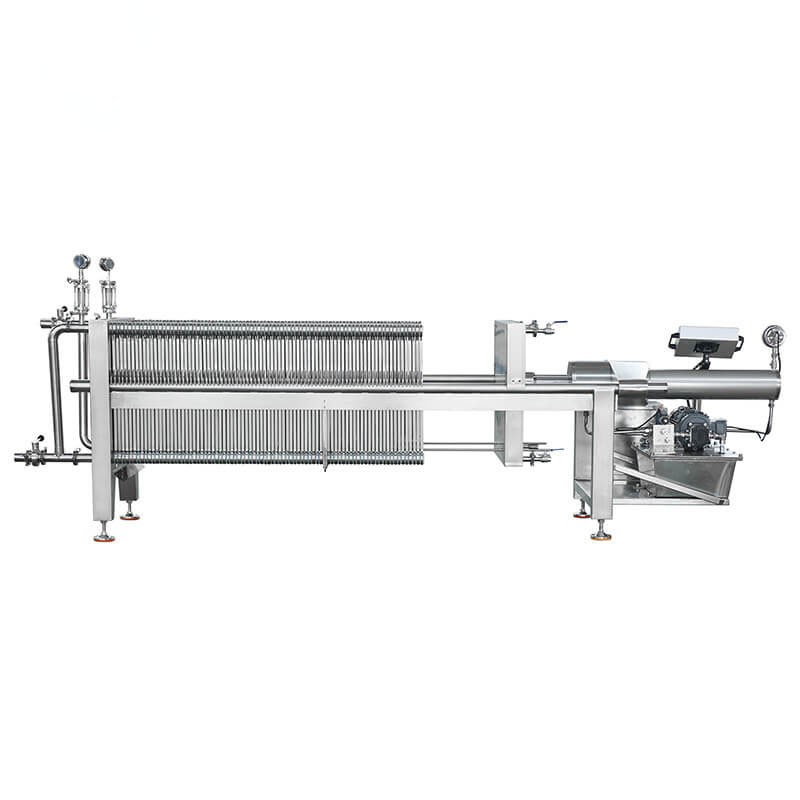

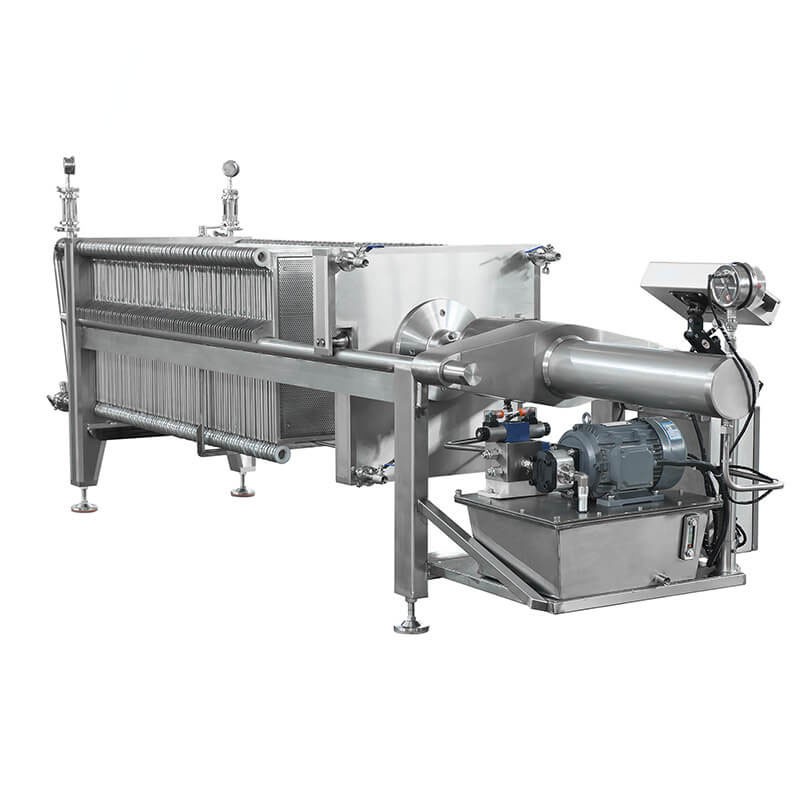

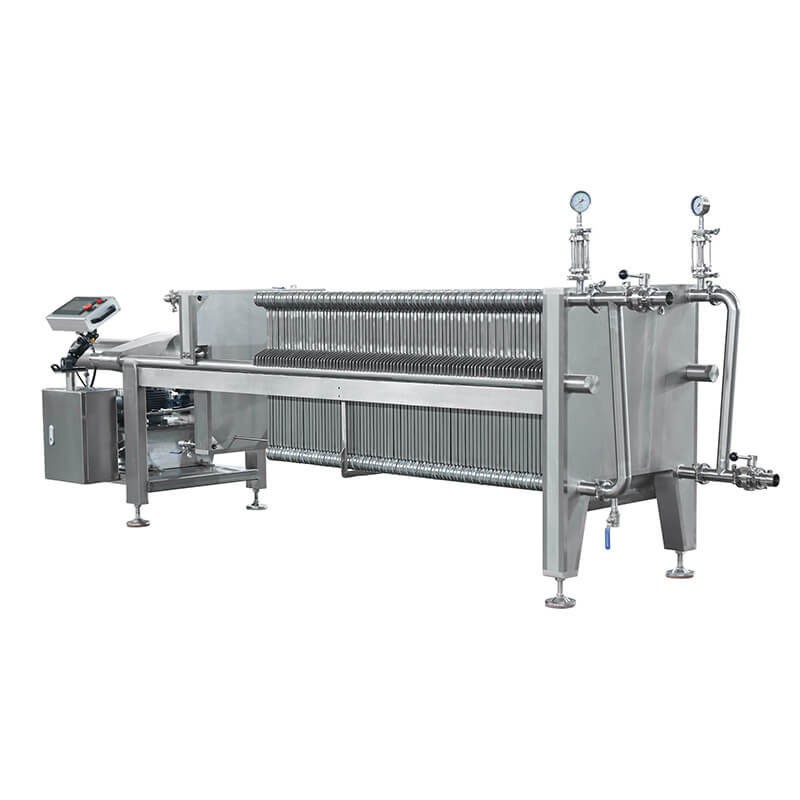

PLC Controlled Automatic Hydraulic Stainless Steel Plate and Frame Filter Press for Fine Filtration
- BASJL600-35
- from 200 mesh to 0.22μm
- 35m²
- Automatic hydraulic
- 0.4 MPa
- White Silicone Rubber
- Description
Description
PLC controlled hydraulic stainless steel plate and frame fine filter is made of 1Cr18Ni9Ti or 304 or 306 high-quality stainless steel materials. The filtration temperature can reach 180°C. This machine integrates coarse filtration and fine filtration, and is suitable for solid-liquid separation of various suspensions. Stainless steel filter presses are specially developed to meet the high requirements of hygiene and purity, and are especially suitable for solid-liquid separation in laboratories, fine chemicals, pharmaceuticals, herbal extraction, food, and cosmetics production.
Advantages
- PIC control, simple and convenient operation, stable operation;
- The whole machine is made of sanitary grade stainless steel, which is high temperature resistant, corrosion resistant and easy to clean;
- Low loss, no leakage, safe, no odor.
Specification
| Model | Filter Area(m²) | Plate Qty | Flow(T/h) | Plate Size(mm) | Dimension(mm) |
|---|---|---|---|---|---|
| BASJL400-2 | 2 | 15 | 1-2 | 400*400 | 1250*660*1300 |
| BASJL400-3 | 3 | 21 | 1-3 | 400*400 | 1350*660*1300 |
| BASJL400-4 | 4 | 31 | 3-4 | 400*400 | 1550*660*1300 |
| BASJL400-6 | 6 | 45 | 4-6 | 400*400 | 1750*660*1300 |
| BASJL400-8.5 | 8.5 | 61 | 6-8 | 400*400 | 2100*660*1300 |
| BASJL400-9.5 | 9.5 | 71 | 8-10 | 400*400 | 2300*660*1300 |
| BASJL600-14 | 14 | 41 | 10-13 | 600*600 | 1750*870*1350 |
| BASJL600-21 | 21 | 61 | 15-20 | 600*600 | 2100*870*1350 |
| BASJL600-24 | 24 | 71 | 20-25 | 600*600 | 2250*870*1350 |
| BASJL600-35 | 35 | 101 | 25-30 | 600*600 | 2800*870*1350 |
