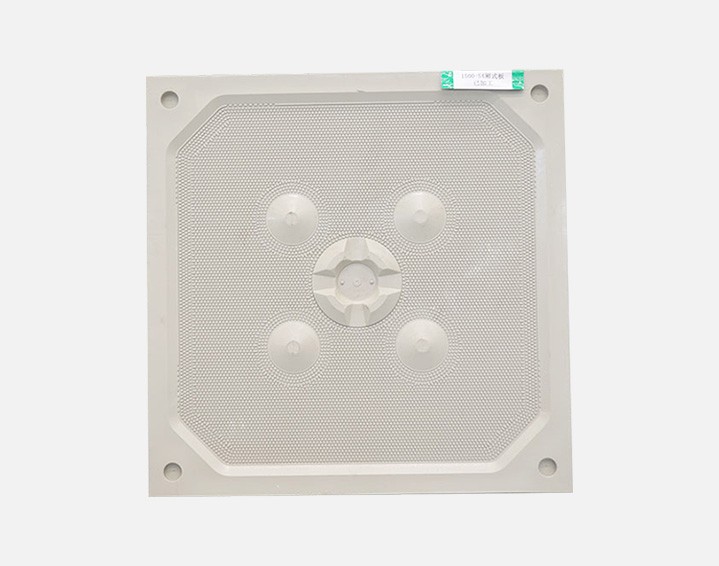

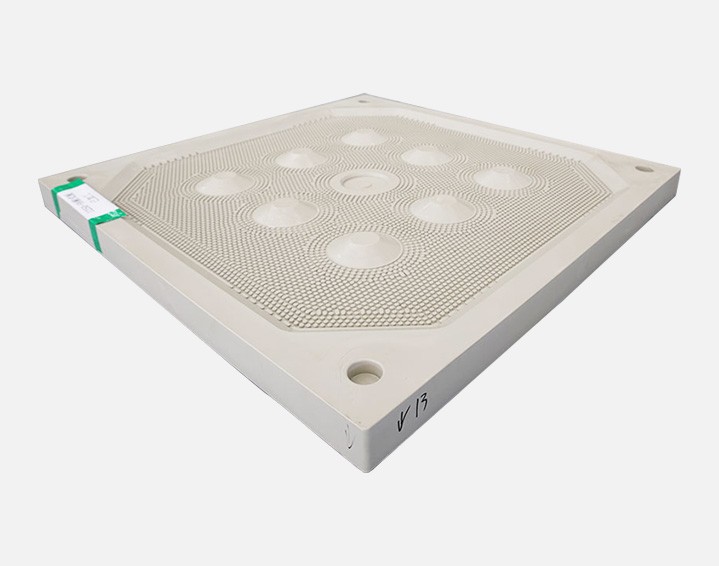

Germany Standard Chamber Filter Plate

The recessed chamber filter plate made from polypropylene is a development of the plate and frame filter plate and has the same functionality. The chamber plate frame is however integrated within the chamber filter plate thus significantly enhancing the plate's stability. This enables chamber filter plates to be used at much higher filtration pressure levels. Optional cake and plate thicknesses

Ask Us

Description

products Advantages

Single element and therefore cheaper than separate plates and frames
Filtration pressures of up to 50 bar
Suitable for high filtration temperatures
Robust design with reinforced edges

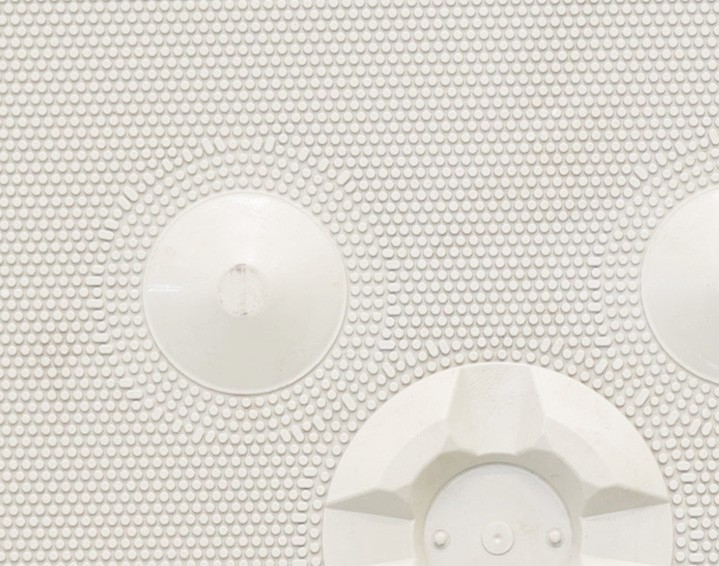

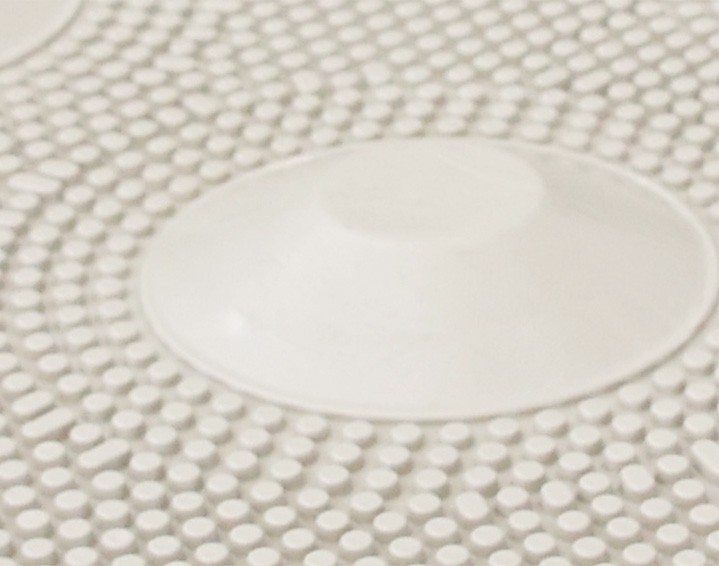

The recessed filter has a special pipped surface to protect the filter cloth and ensure excellent filtration
Chamber plates are moulded with pressing forces up to 4000 tons and 160℃mold temperature, which is unique for this kind of moulding technique. These processing conditions maintain the high physical property profile of our materials of construction.

Technical Data

Format	Standard sizes: 250mm–2500mm, Larger and alternative formats available upon request.
Feed eye position	Standard feeds: Centralised feed, decentralised feed, corner feed, external feed, position eye. In general, any feed eye design is possible and can be made according to customer requirements.
Pressure	Standard products are suitable for a maximum filtration pressure of 8 or 12 bar depending on the product. Special products for pressure levels of 30 bar and higher are available.
Temperatures	−15°C–105°C
Materials	chamber filter plates are available in the following materials according to intended use: Polypropylene homopolymers / copolymers Polypropylene homopolymers FDA / copolymers FDA Antistatic polypropylene PVDF Antistatic PVDF Other materials available on request
Typical applications	1) Chemical industry; 2) Metal refining; 3) Mining industry, ore concentrates and tailings; 4) Minerals processing; 5) New energy battery materials; 6) Sugar; 7) Pharmaceutical, and other industries requiring special temperatures.
