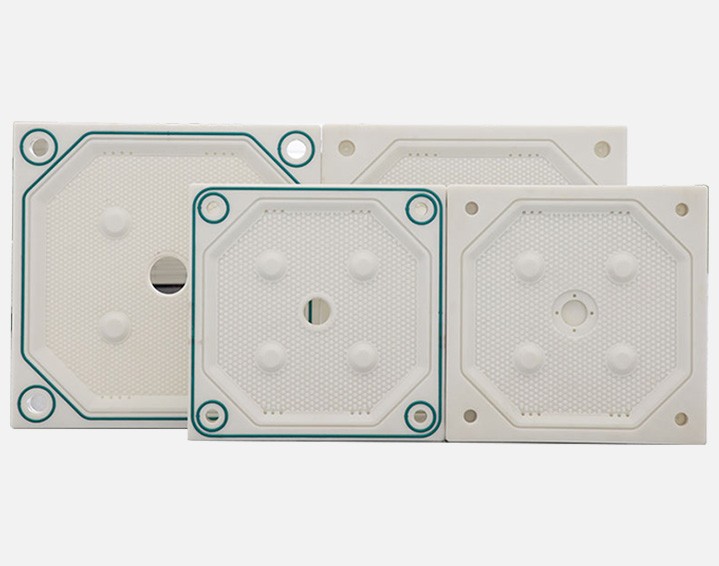

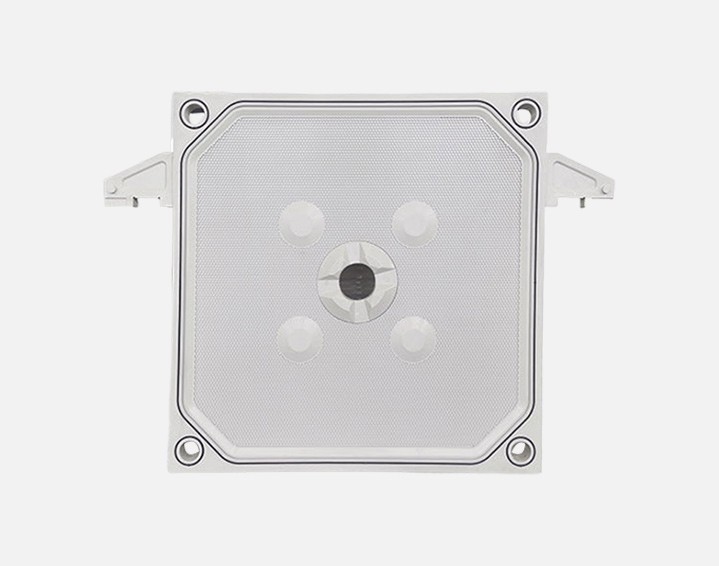

CGR Filter Plate
CGR filter plates offer reliable sealing performance, versatility, chemical compatibility, hygienic design, ease of maintenance, and longevity. They are commonly used in industries where tight sealing and product purity are essential requirements for solid-liquid separation processes.
- Description
products Advantages
Caulking Process:
CGR filter plates feature a unique design where a gasket material is securely sealed into a groove around the perimeter of the filter plate.
Leak Prevention:
The caulking of gasket material prevents leaks and ensures that the filtration process remains tightly sealed.
Technical Data
| Format |
450*450mm 630*630mm 800*800mm 870*870mm 1000*1000mm
1250*1250mm 1500*1500mm 2000*2000mm formats available upon request. |
| Feed eye position | Centralised feed |
| Pressure | Standard products are suitable for a maximum filtration pressure of 8 or 16 bar depending on the product. Special products for pressure levels of 30 bar and higher are available. |
| Temperatures | −15°C–105°C |
| Materials | polypropylene, modified polypropylene, thermoplastic elastomers, PVDF as well as our own specially developed membrane material. A combination of different materials can be used for the body plate and membrane. |
| Seal material | EPDM, NBR, silicone, PTFE, etc., Can be customized |
| Typical applications | CGR filter plates are suitable for applications which slurries contain volatile substances or |
